| Model | WALL1.2-PRO (GOB) | WALL1.5-PRO (GOB) | WALL1.9-PRO | WALL2.5-PRO | WALL2.6-PRO | WALL2.9-PRO | WALL3.9-PRO |
| Pixel Pitch(mm) | 1.25 | 1.56 | 1.95 | 2.5 | 2.6 | 2.976 | 3.91 |
| Pixel Matrix Per Sq.m | 640,000 | 409,600 | 262,144 | 160,000 | 147,456 | 112,896 | 65,536 |
| Pixel Configuration | SMD1010 | SMD1212 | SMD1515 | SMD1515 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (cd/㎡) | ≦1000 | ≦1000 | ≦1000 | ≦1000 | ≦1000 | ≦1000 | ≦1000 |
| Scan | 1/50 | 1/40 | 1/32 | 1/32 | 1/32 | 1/28 | 1/16 |
| Module Dimension | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft | 250x250mm / 0.82x0.82ft |

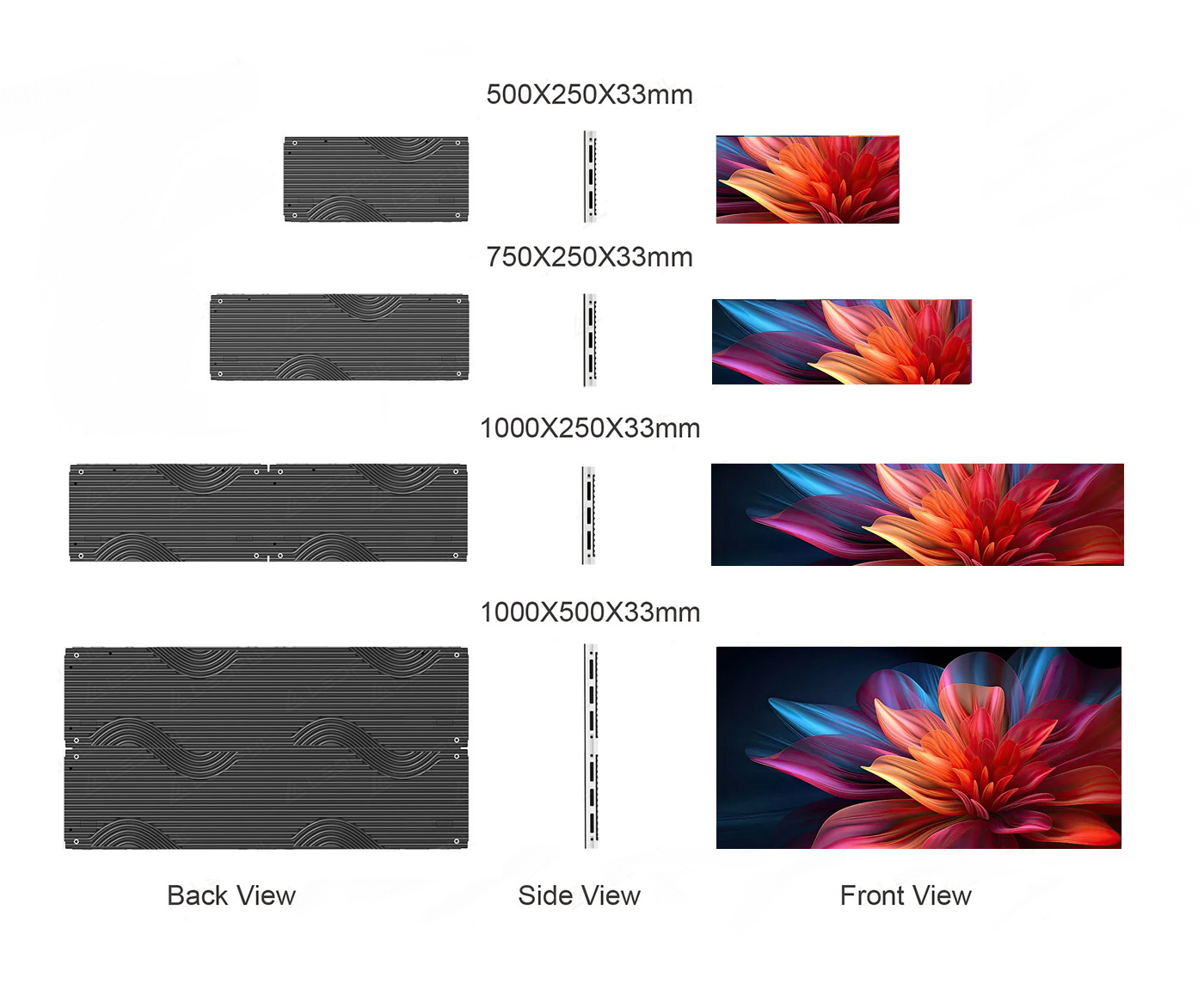

| Cabinet Dimension | 1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
1000/750/500x250mm /1000x500mm |
| Cabinet Resolution | 800/600/400x200 /800×400 |
640/480/320x160 /800×400 |
512/384/256x128 /800×400 |
400/300/200x100 /800×400 |
384/288/192x96 /800×400 |
336/252/168x84 /800×400 |
256/192/128x64 /800×400 |
| Cabinet Material | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum | Die Casting Aluminum |
| Cabinet Weight | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg | 8kg/5.8kg/3.2kg/2.3kg |
| Power Con.(W/㎡) (Max / Avg) | 800W/180W | 800W/180W | 800W/180W | 800W/180W | 800W/180W | 800W/180W | 800W/180W |
| Service Access | Front | Front | Front | Front | Front | Front | Front |
| Refresh Rate (HZ) | 3840 | 3840 | 3840 | 3840 | 3840 | 3840 | 1920 / 3840 (Optional) |
| Grey Scale (bit) | 16 | 16 | 16 | 16 | 16 | 16 | 16 |
| Viewing Angle (H/V) | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° | 160°/160° |
| IP Rate | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 | IP31 |
| Operation Temperature | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ | -20℃ ~ +60°℃ |
| Input Voltage (AC) | 110V~220V | 110V~220V | 110V~220V | 110V~220V | 110V~220V | 110V~220V | 110V~220V |
