| Value |
Q1.8 |
Q1.9 |
Q2.0 |
Q2.4 |
Q2.5 |
| Pixel Pitch(mm) |
1.875 |
1.935 |
2 |
2.4 |
2.5 |
| Pixel Matrix Per Sq.m |
284444 |
267077 |
250000 |
173611 |
160000 |
| Pixel Configuration |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1515 |
SMD1515 |
| Brightness (nits) |
1000 |
1000 |
1000 |
1000 |
1000 |
| Scan |
1/32 |
1/31 |
1/30 |
1/25 |
1/24 |
| Cabinet Resolution |
256x288 |
248x279 |
240x270 |
200X225 |
192X216 |
| Power Con. (Max / Avg) |
700/200 w/sq.m |
| Module Dimension |
240x180mm / 0.79x0.59ft |
| Cabinet Weight |
8.5kg / 18.7Ib ( Die-casting Aluminum) |
| Cabinet Dimension |
480x540x90mm / 1.57x1.77x0.3ft |
| Service Access |
Front / Rear |
| Refresh Rate (HZ) |
≥3840 |
| Grey Scale (bit) |
16 |
| Viewing Angle (H/V) |
160 / 160 |
| IP Rate |
IP41 |
| Input Voltage (AC) |
110V / 240V |
* Specifications and photos are subject to change without prior notice.

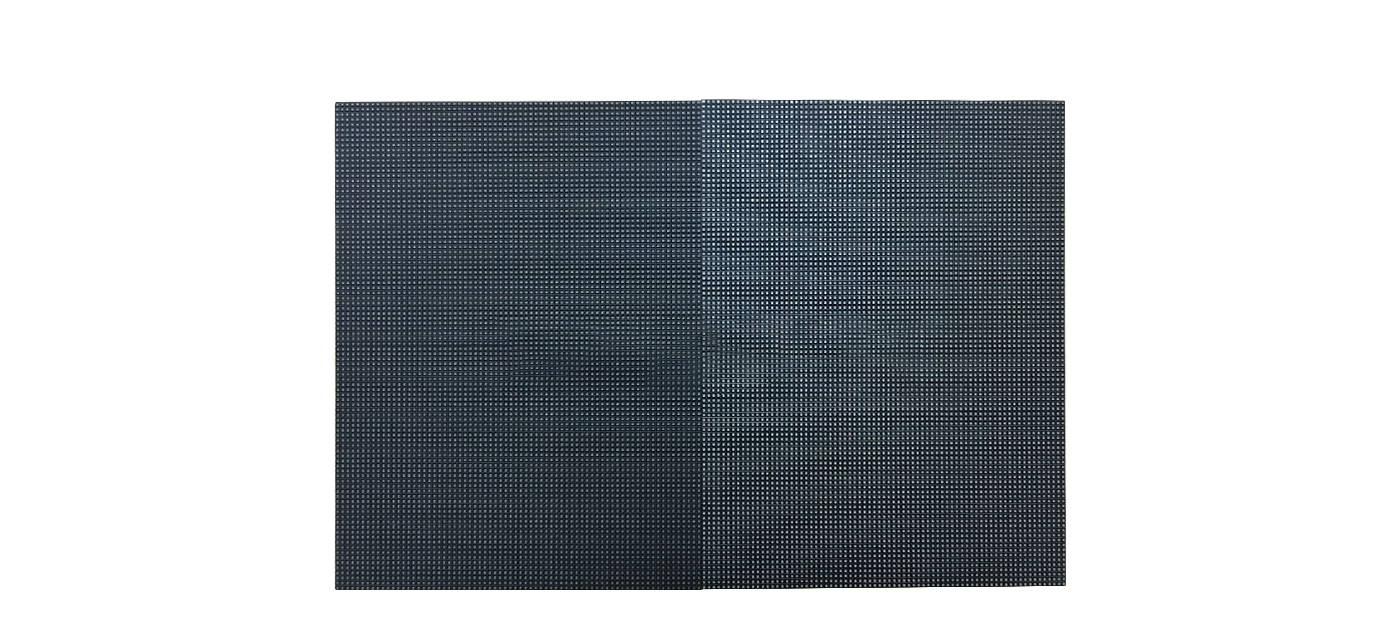

Black SMD LED
LED display with advantage such as high contrast ratio, non reflection, vivid color, etc, let us make your screen in perfect performance.

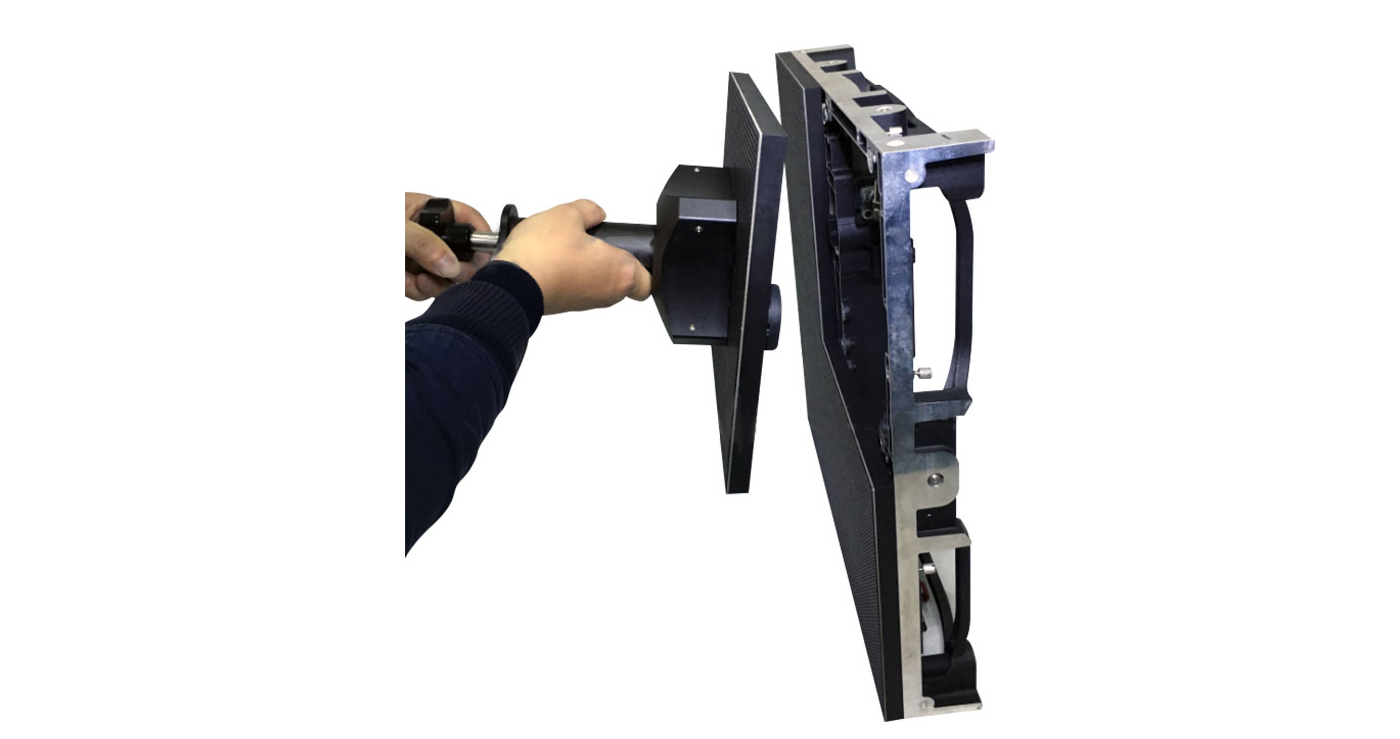

Full Front / Rear Maintenance
Not only module front service, but also power supply, receiver card, hub, etc.

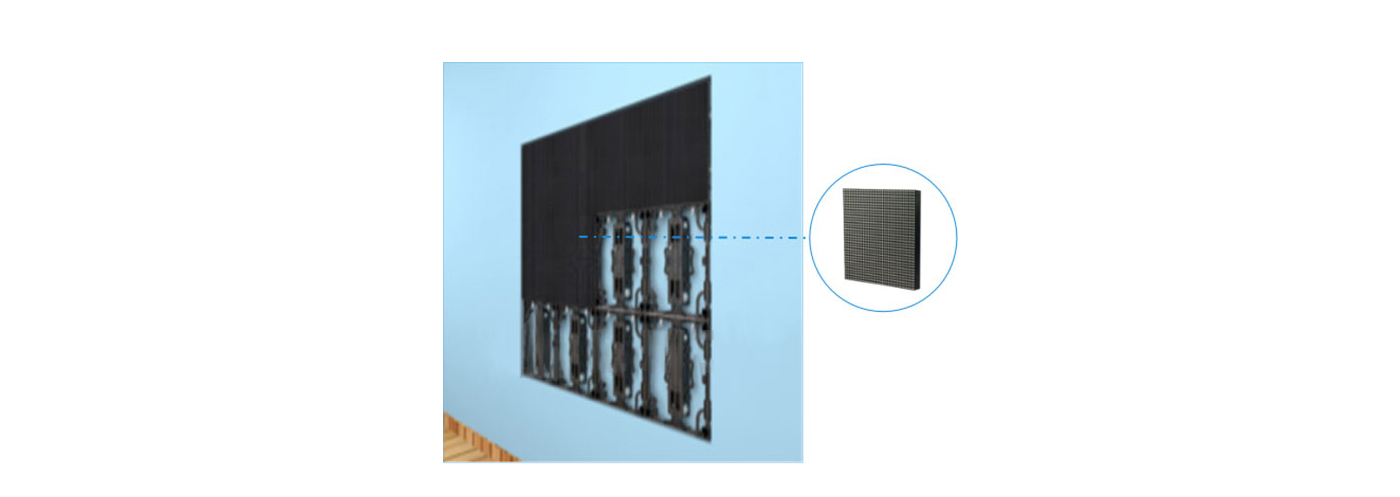

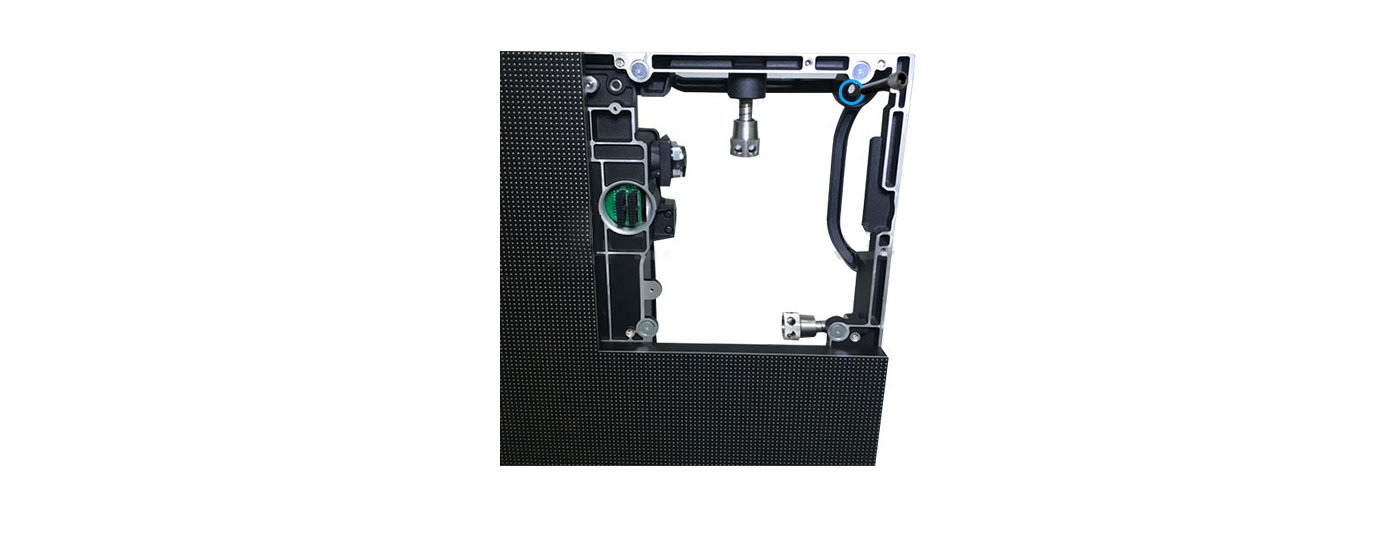

Front Installation
Each corner of cabinet have a screw hole, screw M8 bolts to fix bare cabinet on the wall.
Assembly modules onto the cabinet.
-
Each corner of cabinet has a screw hole, screw the M8 bolts to fix bare cabinets on the wall.
-
Assemble modules onto the cabinet in order

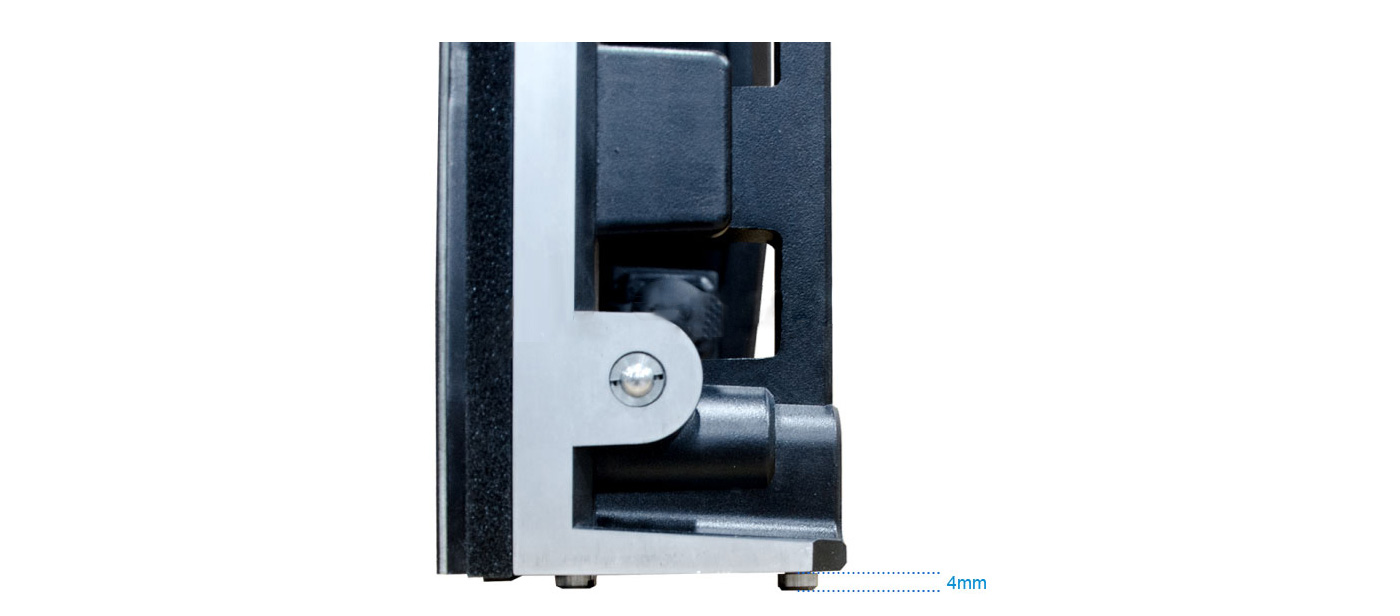

Edge-care Design
4mm stands at the bottom of cabinet, prevent edge pixels damage when put cabinet upright on the ground.

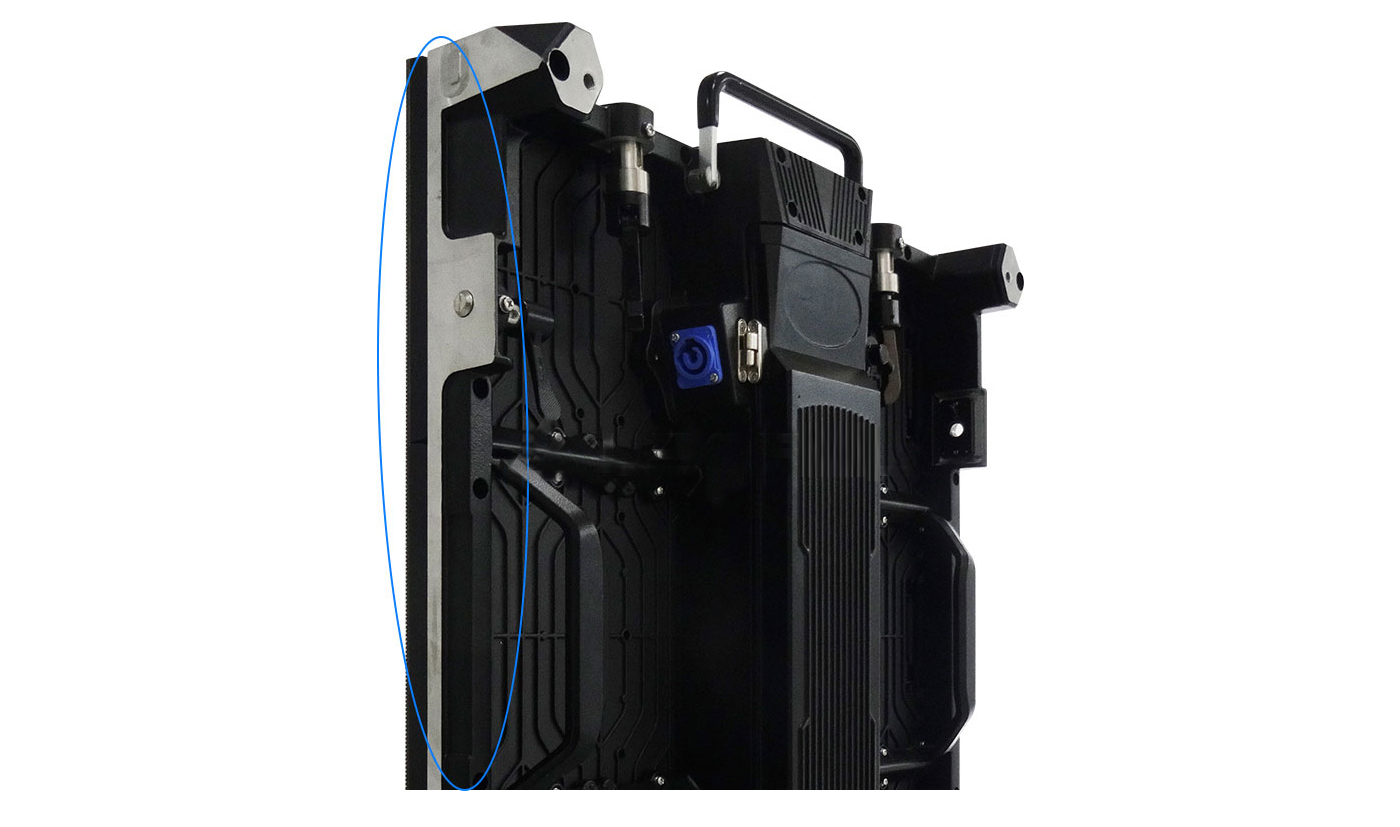

No Light Leakage Trouble
No light leakage design with specific strips on side of cabinet and behind neighbour module.
Low brightness with High grayscale
Low brightness with High grayscale to make the LED display in ultimate view performance
Ultra Wide Viewing Angle
Both 160° from horizontal & vertical for the viewing angle.
Seeing from five directions, it would be still the natural and clear image in an LED display.
Ultra High Definition
It delivers a truly amazing picture with extraordinary pixels producing an image that is HD quality in an LED Screen.
Ultra Fast Response
The response speed exceeds the response limit of the naked eyes,
while playing the high speed dynamic images in an LED Screen,
it will have more advantages, there will be no ghosting&twisting and it will perfectly provide the dynamic images.

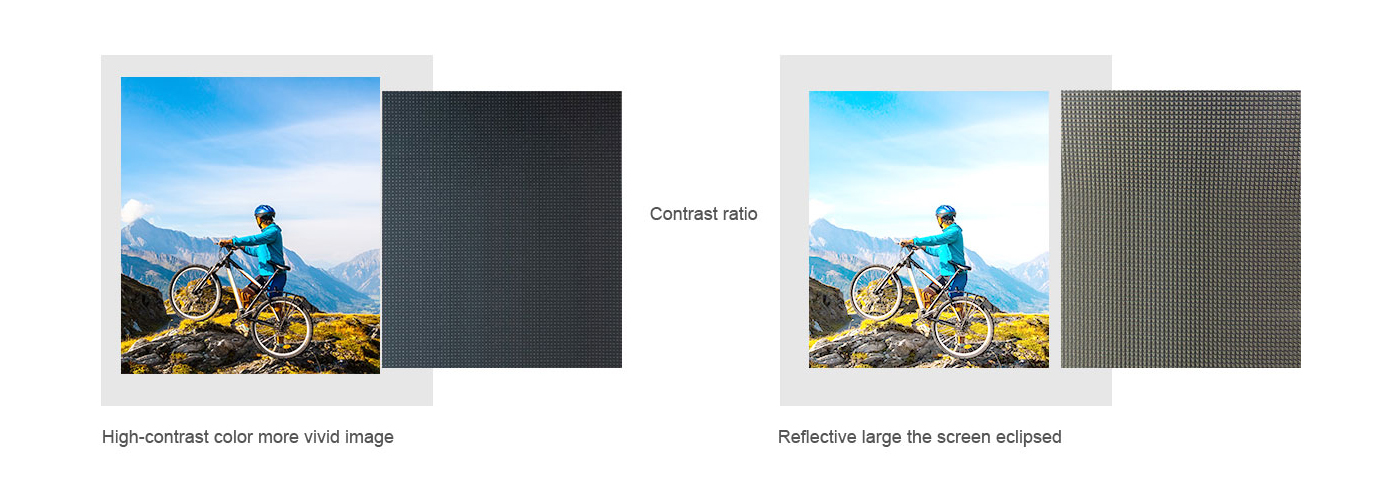

High Contrast Ratio
High-end Black Body SMD Encapsulation, Excellent Performance, it has outstanding performance
when works on the color and has very good contrast.

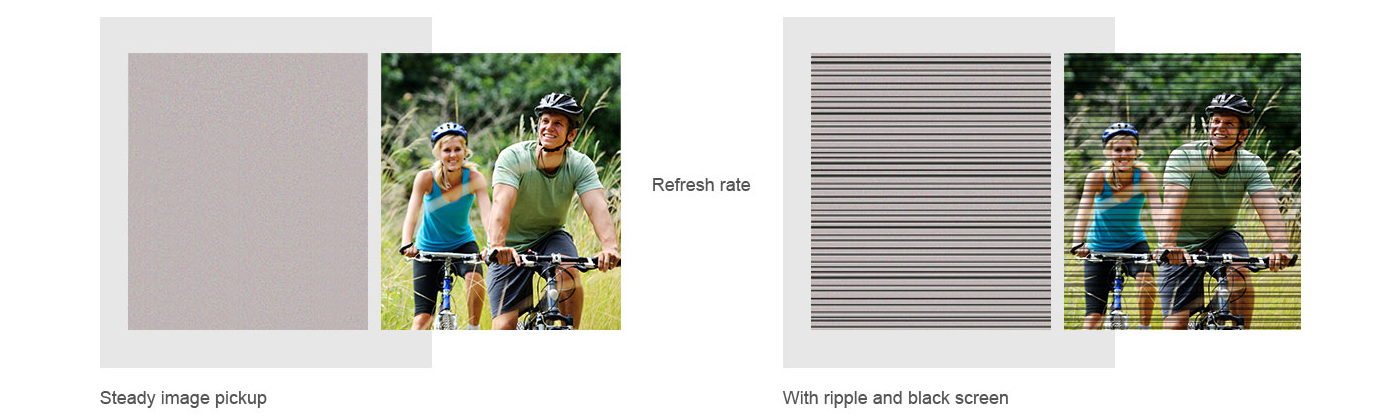

High Refresh Rate
It could be reach 3840HZ.
16 bit Grey Scale
It has almost the perfect gray scale and gives true color of the images,
there will have no data loss and you could see every details clearly.
