| Model | P3.91 | P4.81 | P6.25 | P7.81 | P10.416 |
| Pixel pitch | 3.91 | 4.81 | 6.25 | 7.81 | 10.416 |
| SMD type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Panel resolution(dots/sqm) | 65536 | 43264 | 25600 | 16384 | 9216 |
| Module resolution | 128X64 | 104X52 | 80X40 | 64X32 | 48X24 |
| Material of Panel | Profiled aluminum | Profiled aluminum | Profiled aluminum | Profiled aluminum | Profiled aluminum |
| Module dimension | 500X250 | 500X250 | 500X250 | 500X250 | 500X250 |
| Panel size(mm) | 1000x1000x83 | 1000x1000x83 | 1000x1000x83 | 1000x1000x83 | 1000x1000x83 |
| Protective Grade | IP68 | IP68 | IP68 | IP68 | IP68 |
| Flatness(mm) | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 | ≤0.1 |

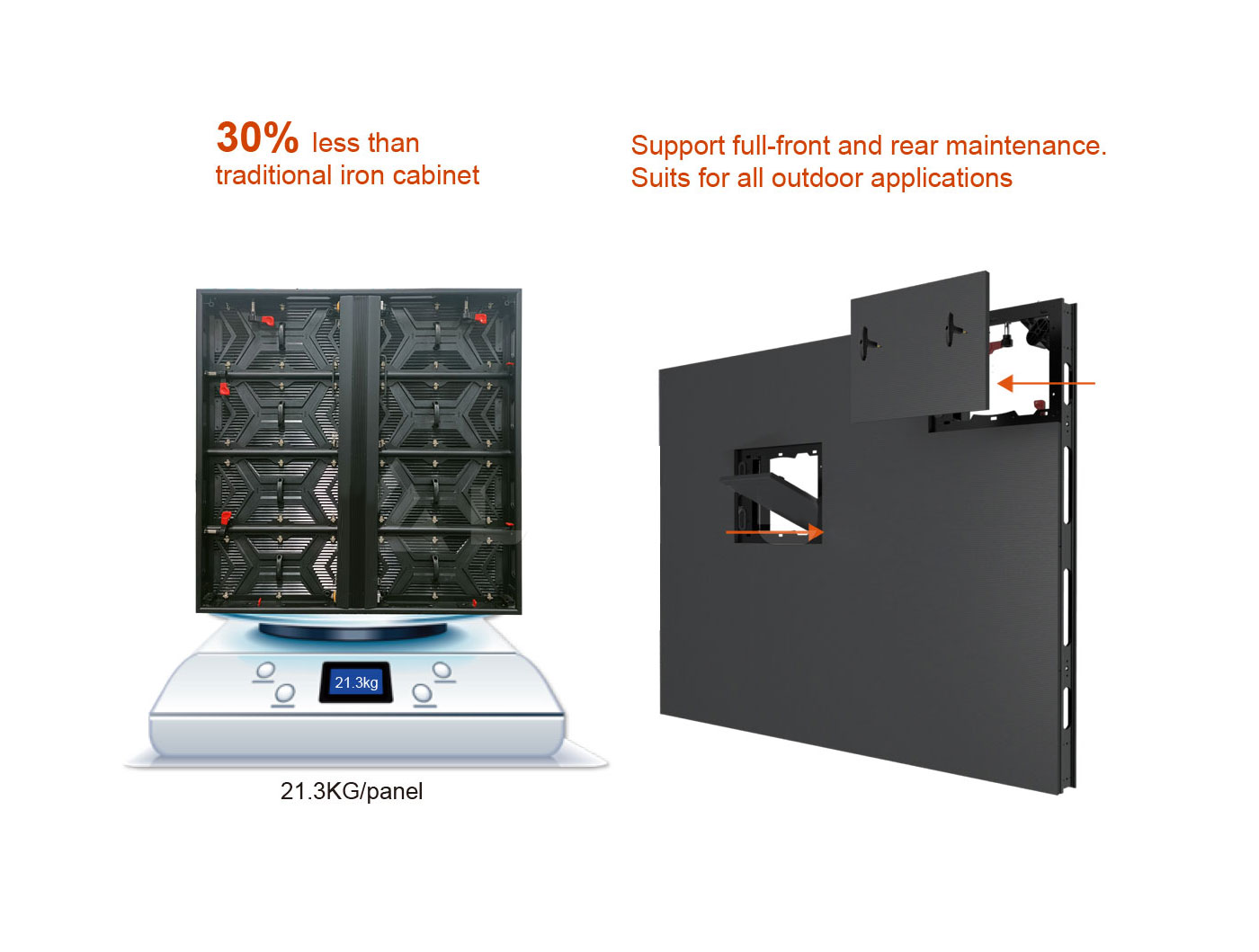

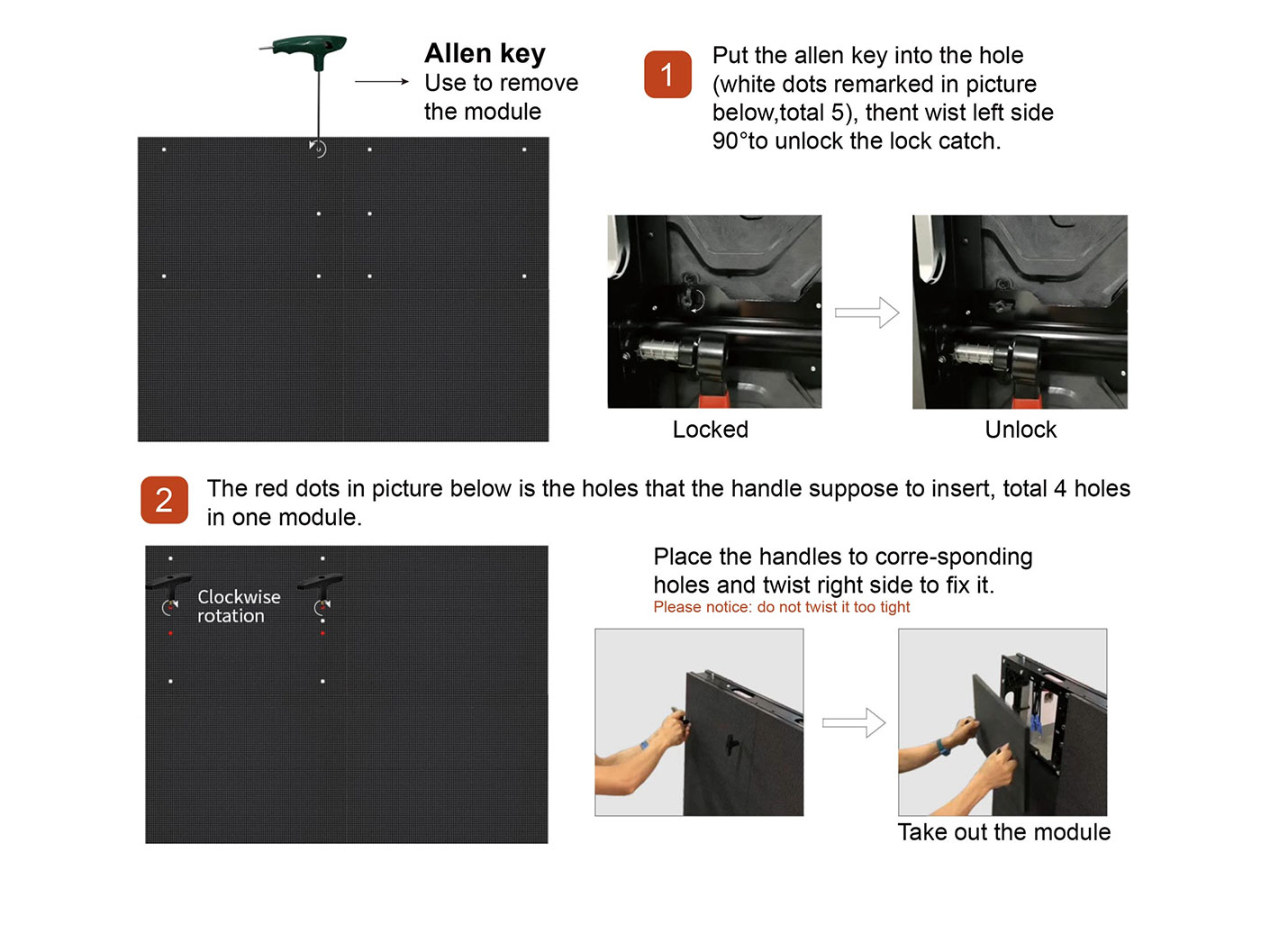

| Maintenance mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Weight of panel (kg/m2) | 21.5 | 21.5 | 21.5 | 21.5 | 21.5 |
| Brightness(nits) | ≥5500 | ≥5500 | ≥5500 | ≥5500 | ≥5500 |
| Color temperature(K) | 8000-10000 optional | 8000-10000 optional | 8000-10000 optional | 8000-10000 optional | 8000-10000 optional |
| Viewing angle(V/H) | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 4000：1 | 4000：1 | 4000：1 | 4000：1 | 4000：1 |
| Drive mode | Constant current 1/16 scale | Constant current 1/13 scale | Constant current 1/8 scale | Constant current 1/4 scale | Constant current 1/2 scale |
| Refresh rate | ≥1920 | ≥1920 | ≥1920 | ≥1920 | ≥1920 |
| Max power consumption(W/m2) | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Avg. power consumption(W/m²) | 250 | 250 | 250 | 250 | 250 |
