| Model | FA3.9 | FA4.8 | FA5.9 | FA6.6 | FA8 | FA10 | FA16 |
| Pixel Pitch(mm) | 3.91 | 4.81 | 5.95 | 6.67 | 8 | 10 | 16 |
| Pixel Matrix Per Sq.m | 65536 | 43264 | 28224 | 22500 | 15625 | 10000 | 3906 |
| Pixel Configuration | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 | SMD2727 | DIP |
| Brightness (nits) | 5000 | 5000 | 6000 | 6500 | 6800 | 7000 | 7500 |
| Scan | 1/8 | 1/6 | 1/6 | 1/6 | 1/5 | 1/2 | 1/1 |
| Module Dimension | 250x250mm / 0.82x0.82ft |
250x250mm / 0.82x0.82ft |
250x250mm / 0.82x0.82ft |
320x320mm / 1.05x10.5ft |
320x320mm / 1.05x10.5ft |
320x320mm / 1.05x10.5ft |
320x320mm / 1.05x10.5ft |
| Cabinet Dimension | 1000x1000mm / 3.28x3.28ft |
1000x1000mm / 3.28x3.28ft |
1000x1000mm / 3.28x3.28ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
960x960mm / 3.15x3.15ft |
| Cabinet Resolution | 256x256 | 208x208 | 168x168 | 144x144 | 120x120 | 96x96 | 60x60 |
| Cabinet Material | Iron | Iron | Iron | Die casting aluminum | Die casting aluminum | Die casting aluminum | Die casting aluminum |
| Cabinet Weight | 45kg | 44kg | 43kg | 29kg | 29kg | 29kg | 32kg |
| Power Con. (Max/Avg) | 900 / 200 w/sq.m | 900 / 200 w/sq.m | 900 / 200 w/sq.m | 900 / 180 w/sq.m | 900 / 180 w/sq.m | 900 / 180 w/sq.m | 900 / 180 w/sq.m |

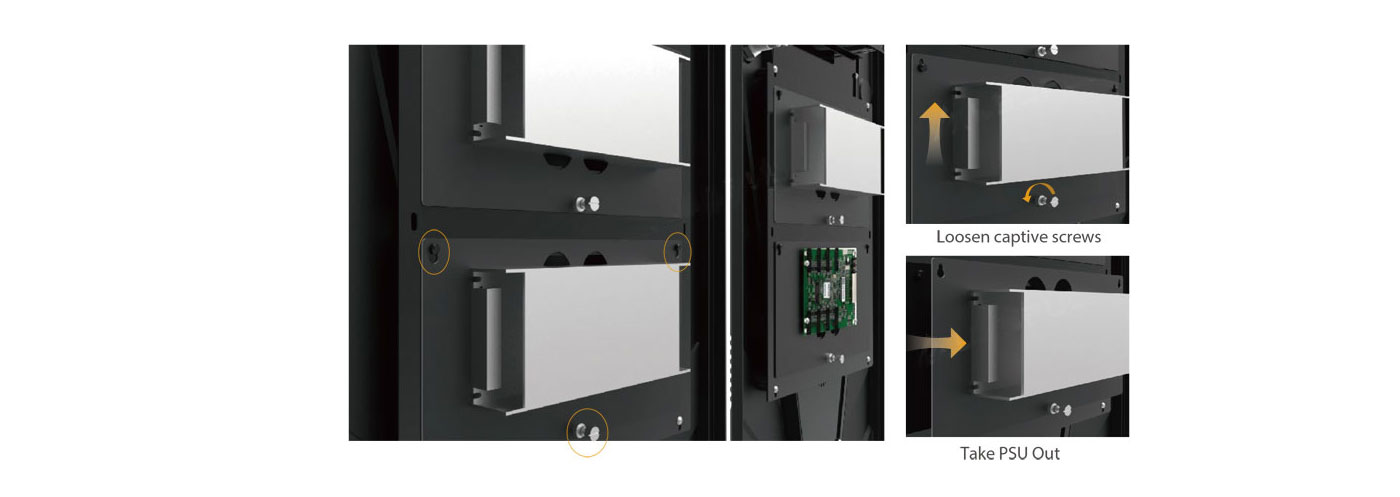

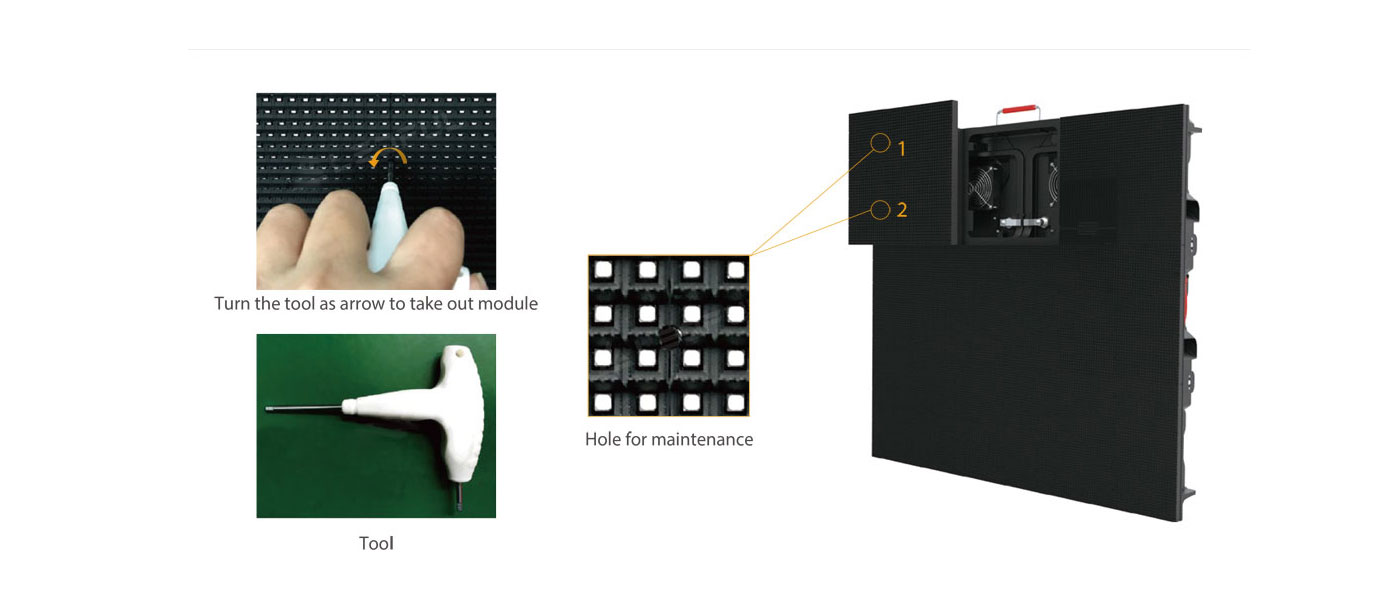

| Service Access | Front & Back | Front & Back | Front & Back | Front & Back | Front & Back | Front & Back | Front & Back |
| Refresh Rate (HZ) | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 | 1920 |
| Grey Scale (bit) | 14 | 14 | 14 | 14 | 14 | 14 | 14 |
| Viewing Angle (H/V) | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 | 140 / 140 |
| IP Rate | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 | IP65 |
| Operation Temperature | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° | -20° ~ 60° |
| Input Voltage (AC) | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V | 100V or 240V |
