| Model | P4.16 | P5 | P6.25 | P8.33 | P10 |
| SMD type | SMD1921 | SMD1921 | SMD2727 | SMD2727 | SMD2727 |
| Physical density（dots/sqm） | 57600 | 40000 | 25600 | 14400 | 10000 |
| Module resolution | 96X72 | 80X60 | 64X48 | 48X36 | 40X30 |
| Module dimension | 400X300 | 400X300 | 400X300 | 400X300 | 400X300 |
| Module quantity（W×H） | 2X3 / 2x4 | 2X3 / 2x4 | 2X3 / 2x4 | 2X3 / 2x4 | 2X3 / 2x4 |
| Panel resolution（W×H） | 192X216 / 192X288 | 160X180 / 160X240 | 128X144 / 128X192 | 96X108 / 96X144 | 80X90 / 80X120 |
| Panel size（mm） | 800x900 / 800X1200 | 800x900 / 800X1200 | 800x900 / 800X1200 | 800x900 / 800X1200 | 800x900 / 800X1200 |

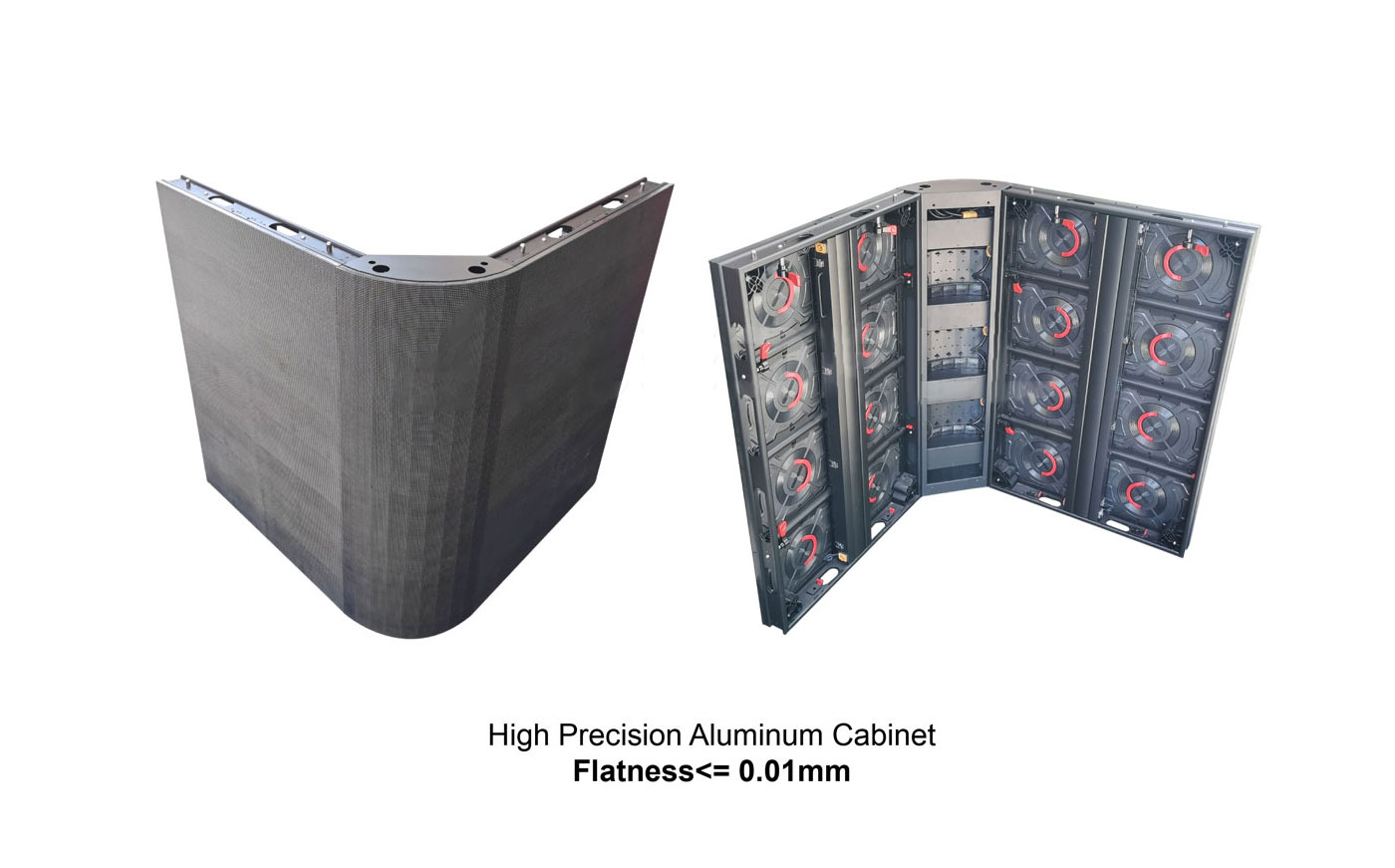

| Flatness（mm） | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 | ≤0.015 |

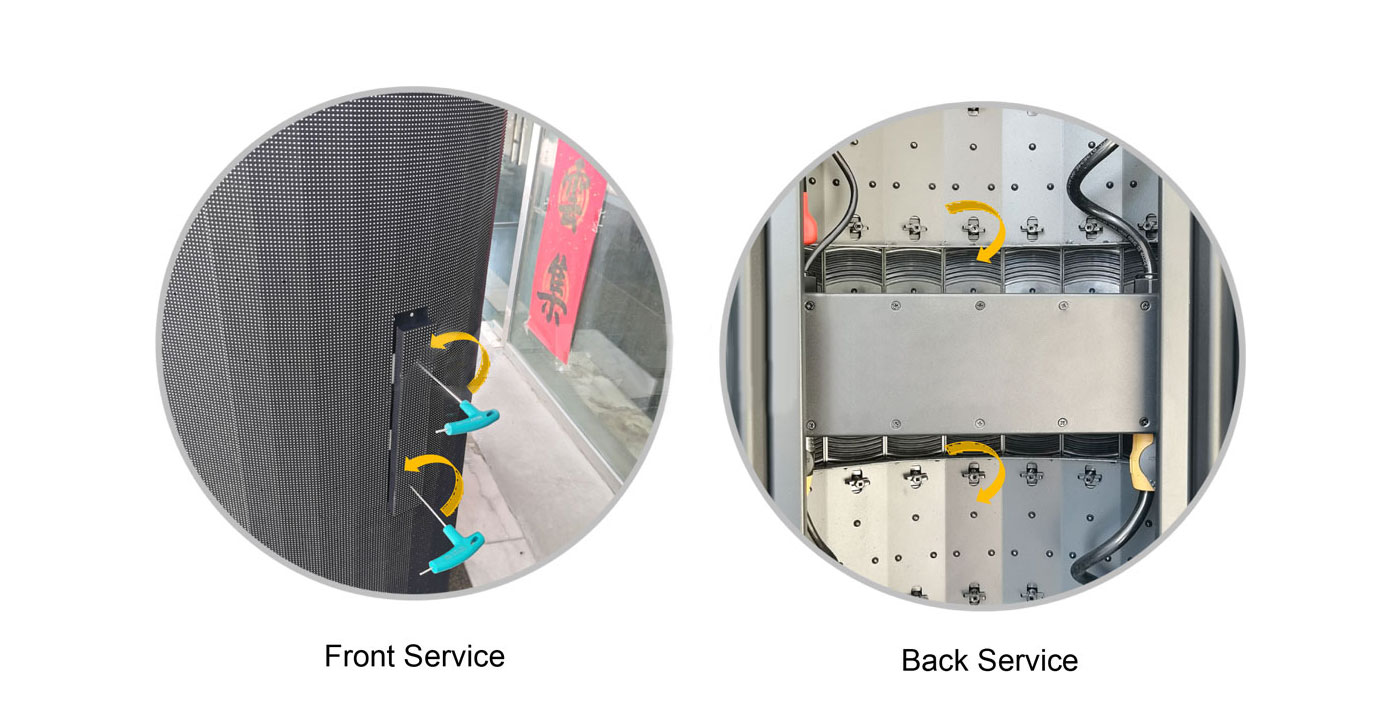

| Maintenance mode | Front & Rear | Front & Rear | Front & Rear | Front & Rear | Front & Rear |
| Brightness（nits） | 6500 | 6500 | 6500 | 6500 | 6500 |
| Color temperature（K） | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional | 3200-9300 optional |
| Grey scale | 65536 | 65536 | 65536 | 65536 | 65536 |
| Viewing angle（V/H） | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° | 160°/ 160° |
| Contrast ratio | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 | 5000:01:00 |
| Frame-changing frequently | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz | 50/60Hz |
| Drive mode | Constant current1/6 scale | Constant current 1/6 scale | Constant current 1/6 scale | Constant current 1/3 scale | Constant current 1/2 scale |
| Refresh rate | 3840 | 3840 | 3840 | 3840 | 3840 |
| Max power consumption（W/m2） | 600-800 | 600-800 | 600-800 | 600-800 | 600-800 |
| Avg. power consumption（W/m2） | 100-200 | 100-200 | 100-200 | 100-200 | 100-200 |
| Electric power requirements | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz | AC90-264V 47-63Hz |
