| Model | CL1.5 | CL1.6 | CL1.8 | CL2 | CL2.5 |
| Pixel Pitch (mm) | 1.57 | 1.66 | 1.87 | 2 | 2.5 |
| Pixel Matrix Per Sqm | 405,695 | 360,000 | 284,444 | 250,000 | 160,000 |
| Pixel Configuration | SMD1212 | SMD1212 | SMD1515 | SMD1515 | SMD2121 |
| Brightness (cd/m²) | 1000 | 1000 | 1000 | 1000 | 1000 |
| Scan | 1/50 | 1/48 | 1/43 | 1/32 | 1/16 |
| Module Dimension | 240x120mm / 0.79x0.39ft | 240x120mm / 0.79x0.39ft | 240x240mm / 0.79x0.79ft | 240x240mm / 0.79x0.79ft | 240x240mm / 0.79x0.79ft |
| Cabinet Dimension | 480x480mm / 1.57x1.57ft | 480x480mm / 1.57x1.57ft | 480x480mm / 1.57x1.57ft | 480x480mm / 1.57x1.57ft | 480x480mm / 1.57x1.57ft |
| Cabinet Resolution | 306x306 | 289x289 | 257x257 | 240x240 | 192x192 |
| Cabinet Material | Die Casting Aluminum | ||||
| Cabinet Weight | 5KG | ||||
| Power Con. (W/m²) (Max / Avg) | 200W/100W | ||||

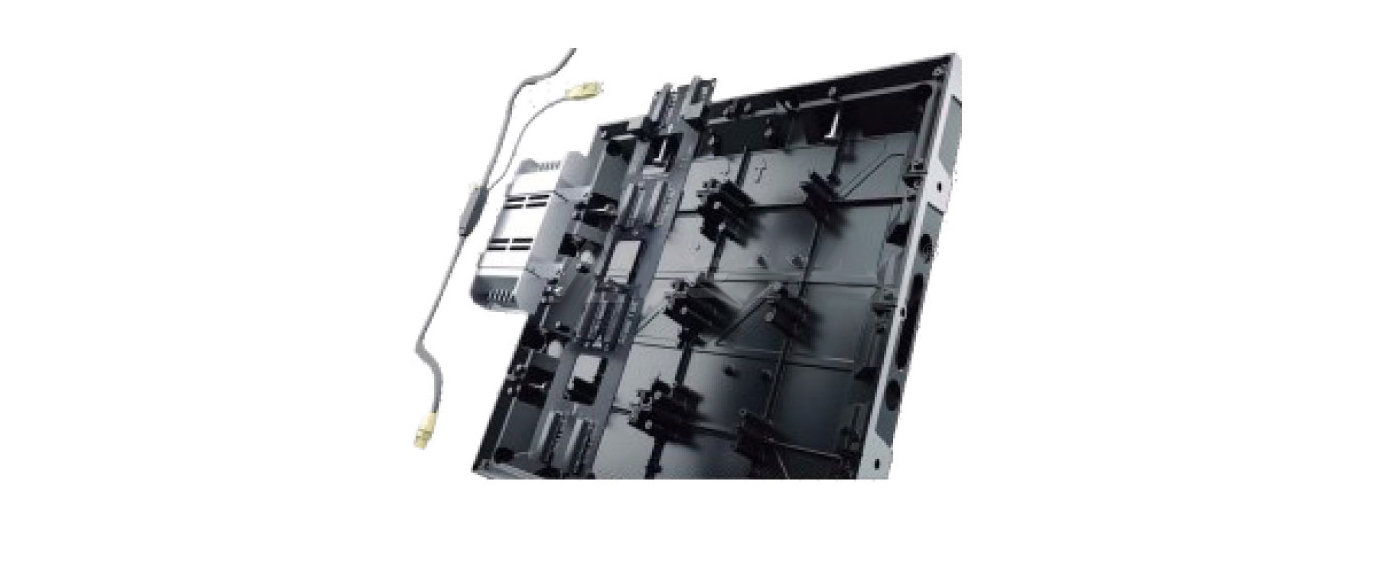

| Service Access | Front | ||||
| Refresh Rate (HZ) | ≥3840 | ||||
| Grey Scale (bit) | 14 | ||||
| Viewing Angle (H/V) | 160°/160° | ||||
| IP Rate | IP45 | ||||
| Operation Temperate | -20℃ ~+80℃ | ||||
| Input Voltage (AC) | 110V / 220V |
