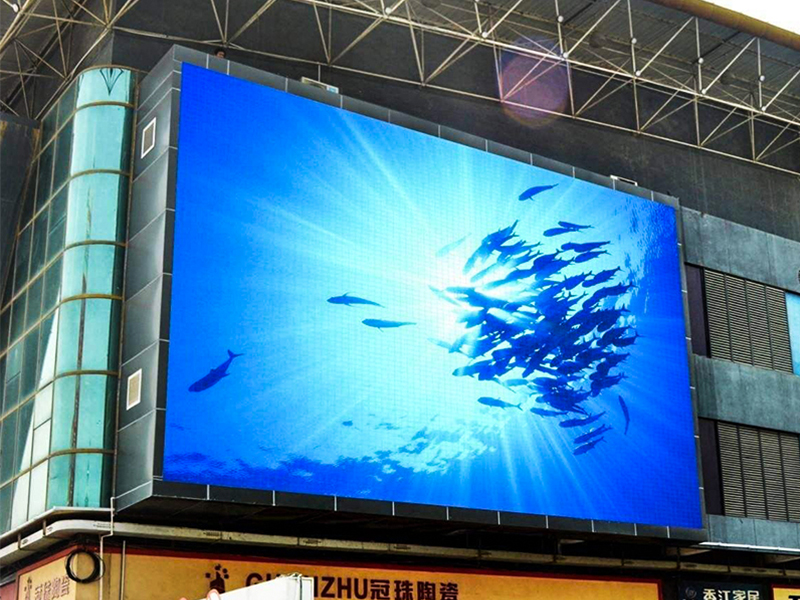

In the selection of outdoor LED displays, "pixel pitch" is a core parameter that runs through the entire process, directly determining the display effect, viewing experience, and project cost. Many purchasers and engineers often wonder: How are the pixel pitches of outdoor LED displays classified?
Question 1: What is the "pixel pitch" of an outdoor LED display? What is its core definition?
Authoritative Answer: The "pixel pitch" of an outdoor LED display, a professional term, refers to the distance between the centers of two adjacent light-emitting pixels on the display, usually measured in millimeters (mm). Essentially, pixel pitch reflects the pixel density per unit area — the smaller the pixel pitch, the higher the pixel density and the finer the image; the larger the pixel pitch, the lower the pixel density and the more obvious the graininess of the image. Since outdoor displays are mostly used for long-distance viewing, the selection of pixel pitch needs to strike an optimal balance between "clarity requirements" and "cost control", which is significantly different from the logic of pursuing extreme fineness for indoor displays.
Data Support: According to the "General Technical Specifications for LED Displays" (SJ/T 11281-2020), the labeling error of pixel pitch must be controlled within ±5%. Taking the common P10 outdoor display as an example, its standard pixel pitch is 10mm, and the actual measured value must be within the range of 9.5mm-10.5mm to meet the industry standards. This precision requirement directly ensures the consistency of the image after the mass-produced displays are spliced.
Question 2: What are the main categories of pixel pitches for outdoor LED displays? What are the basis for their classification?
Authoritative Answer: The classification of pixel pitches for outdoor LED displays is not arbitrary. Based on the "optimal viewing distance" as the core basis, combined with industry application habits and technical maturity, it can be roughly divided into three categories: small pixel pitch (P2.5-P4), medium pixel pitch (P5-P10), and large pixel pitch (P12 and above). This classification not only covers all needs from short-distance outdoor scenarios (such as pedestrian street windows) to ultra-long-distance scenarios (such as highway billboards) but also matches technical indicators such as the luminous efficiency of LED lamp beads and the load capacity of driver ICs.
Data Support: The commonly used "optimal viewing distance calculation formula" in the industry is: Optimal Viewing Distance = Pixel Pitch × 1000 ÷ 2.54 (unit: inch conversion), which can be simplified as "the optimal viewing distance is approximately 3-5 times the pixel pitch". Based on this formula, the core application ranges of different pixel pitches are clearly defined: the optimal viewing distance for small-pitch outdoor displays is 10-20 meters, for medium-pitch ones is 20-50 meters, and for large-pitch ones is more than 50 meters. This data has become an important reference standard for the selection of outdoor displays.
Question 3: What are the characteristics of small-pitch outdoor LED displays (P2.5-P4)? What scenarios are they suitable for?
Authoritative Answer: Small-pitch outdoor LED displays are a key direction of technological upgrading in recent years, and their core advantage lies in "balancing outdoor environmental resistance and short-distance clarity". Compared with indoor small-pitch displays, they additionally have outdoor-specific performances such as high brightness (≥5000nits), UV resistance, and water and dust resistance (protection level ≥IP65); compared with traditional outdoor displays, they can meet the short-distance viewing needs within 10 meters, solving the problem of "severe graininess" when viewing traditional outdoor displays up close.
Data Support: The pixel density of P2.5 outdoor displays is 160,000 dots/㎡, and that of P4 outdoor displays is 62,500 dots/㎡, which are 16 times and 6.25 times that of P10 outdoor displays (10,000 dots/㎡) respectively. Typical application scenarios of such displays include: commercial pedestrian street window displays (viewing distance 5-15 meters), outdoor live broadcast background displays (viewing distance 8-20 meters), scenic spot entrance information displays (viewing distance 10-18 meters), etc. Taking a P3 outdoor display project in a pedestrian street as an example, its display image can clearly present text details within a distance of 12 meters, with a resolution of 1920×1080, which meets the playback needs of high-definition content such as short videos and advertisements.
Question 4: Are medium-pitch outdoor LED displays (P5-P10) the mainstream choice? What are their core advantages?
Authoritative Answer: Medium-pitch outdoor LED displays are currently the "mainstream category" in the market. With the core advantage of "balanced cost performance", they account for more than 60% of the outdoor display market share (according to the 2024 China LED Display Industry White Paper). Such displays have the highest technical maturity, which can not only meet the clarity requirements of most outdoor scenarios but also effectively control project costs, making them the first choice for scenarios such as commercial advertising, government publicity, and stadiums.
Data Support: The pixel density of P5 outdoor displays is 40,000 dots/㎡, with an optimal viewing distance of 15-25 meters; the pixel density of P8 outdoor displays is 15,625 dots/㎡, with an optimal viewing distance of 24-40 meters; the pixel density of P10 outdoor displays is 10,000 dots/㎡, with an optimal viewing distance of 30-50 meters. Taking the common outdoor column advertising display as an example, the display using P8 specification can clearly identify the facial features of characters in the advertising image within a distance of 30 meters, with a stable brightness of 6000nits, no reflection interference even under strong noon light, and a power consumption of about 120W/㎡ for 12 hours of daily playback, which is much lower than that of traditional LCD outdoor displays.
Question 5: What is the application value of large-pitch outdoor LED displays (P12 and above)? What are the technical focuses?
Authoritative Answer: Large-pitch outdoor LED displays take "ultra-long-distance visibility" and "super-large-size splicing" as their core values, and are mainly used in special scenarios with long viewing distances and large screen areas. Such displays do not need to pursue excessively high pixel density; instead, they focus their technical efforts on "high reliability", "low power consumption", and "easy maintenance", because their installation locations are often at high altitudes (such as rooftop large screens) and remote areas (such as highway signs), resulting in high maintenance costs.
Data Support: The pixel density of P12 outdoor displays is about 6,944 dots/㎡, with an optimal viewing distance of 36-60 meters; the pixel density of P16 outdoor displays is 3,906 dots/㎡, with an optimal viewing distance of 48-80 meters; displays with a pixel pitch of P20 and above can have an optimal viewing distance of more than 100 meters, and are often used in large prompt screens beside highways, landmark screens on urban skylines, etc. Taking a P16 outdoor display project on a highway as an example, the screen area is 120㎡, the size of a single module is 1280×960mm, and the weight is only 8kg per module, which is convenient for high-altitude installation; its protection level reaches IP67, which can withstand extreme temperatures from -30℃ to 60℃, and the annual failure rate is less than 0.5%, fully adapting to harsh outdoor environments.
Question 6: How to accurately select the pixel pitch of an outdoor LED display? What are the core decision-making factors?
Authoritative Answer: The selection of pixel pitch is not "the smaller the better", but needs to comprehensively consider three core factors: first, the "actual viewing distance", which is the most fundamental basis and needs to be determined by combining the closest and farthest viewing points of the audience in the scenario; second, the "display content" — if displaying detailed content such as text and charts, the pixel pitch should be smaller; if displaying long-range videos and dynamic images, the pixel pitch can be appropriately larger; third, the "project budget" — under the premise of meeting basic needs, each reduction in the pixel pitch specification will increase the cost by about 30%-50%, so a rational balance is required.
Data Support: Taking an outdoor square display project as an example, if the square is 80 meters wide, the audience's main activity area is within 15-50 meters, and the displayed content is mainly commercial advertisements and event live broadcasts, then the pixel pitch of P6-P8 is the optimal choice. The P6 display can meet the detailed viewing needs within 18 meters, and the P8 display has a clear effect within 24 meters. The cost difference between the two is about 35%, which can be flexibly adjusted according to the budget. If the P4 small-pitch display is reluctantly selected, although the clarity is improved, the cost increases by 80%, and the viewing effect beyond 50 meters is not significantly different from that of the P8 display, resulting in resource waste.
