LED Display Module: In-Depth Guide to Structure and Working Principles

Overview: What is an LED Display Module?

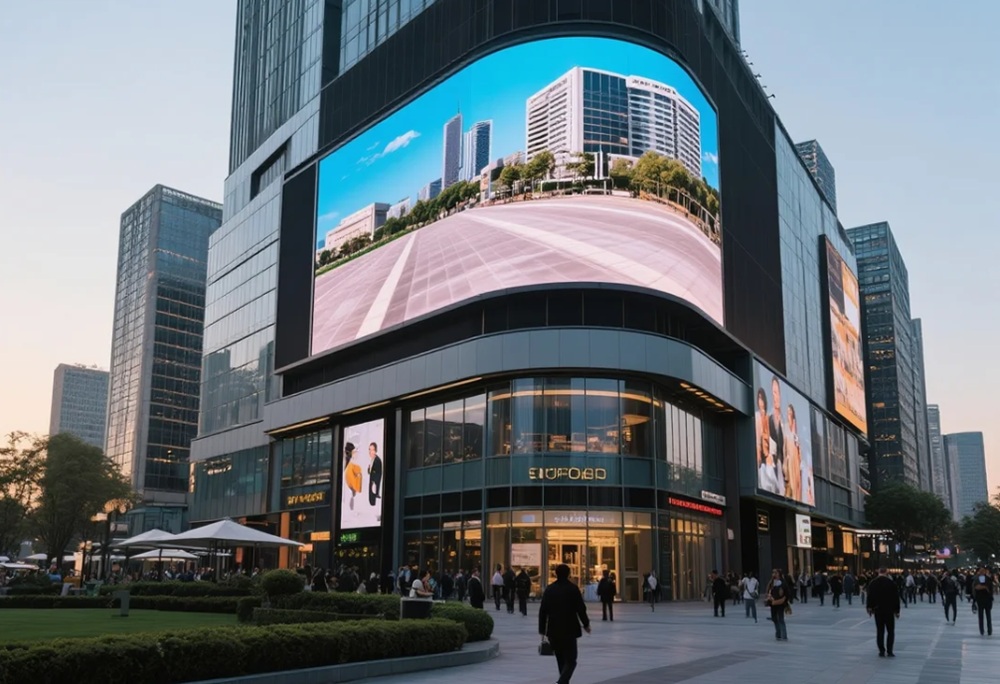

An LED display module is the fundamental building block of an LED display, similar to bricks in a wall. It is a self-contained circuit board capable of independent display, populated with LED lamps, driver chips, and other electronic components. When multiple modules are assembled together, they form the large LED screens we see everywhere.

The quality of the module directly determines the overall display performance and lifespan of the screen. Its core function is to convert digital signals from the controller into the colorful images we see.

Part 1: Detailed Composition: Six Core Components

1. LED Lamps: The Light Source

LED lamps are the core light-emitting elements. Common sizes for indoor screens are 2121 and 1515, while outdoor screens typically use 3535. A full-color pixel consists of one red, one green, and one blue LED lamp.

Technical Details:

• Brightness: Outdoor module single-lamp brightness can reach 1000-2000 mcd; indoor modules are typically 200-500 mcd.

• Wavelength: Red 620-625nm, Green 520-525nm, Blue 465-470nm.

• Consistency: Brightness deviation within the same batch must be controlled within ±5%; wavelength deviation within ±2nm.

• Failure Rate: Industry standard requires less than 3 per 10,000 (after 72-hour aging test).

2. PCB: The Foundation

The PCB is the module's skeleton, holding all components. Common thicknesses are 1.0mm, 1.2mm, and 1.6mm.

Material Types:

• FR4 Fiberglass: Most common, cost-effective, suitable for most applications.

• Aluminum Substrate: Better heat dissipation, used for high-brightness outdoor modules.

• Copper Substrate: Best thermal conductivity, used for high-end products like Mini LED.

• Flexible PCB: Bendable, used for curved or column screens.

Circuit Design:

• Trace Width/Spacing: Standard design is 0.2mm/0.2mm.

• Copper Thickness: 1oz (35μm) or 2oz (70μm). Outdoor modules often use 2oz for better heat dissipation.

• Solder Mask Color: Primarily black to reduce reflection and improve contrast.

3. Driver IC: The Control Center

Driver chips precisely control each LED lamp. Common models include MBI5153, ICN2053, SM16126.

Key Parameters:

• Refresh Rate: Standard ≥1920Hz, High-end ≥3840Hz.

• Grayscale: Mainstream 16-bit (65,536 levels), High-end 17-bit (131,072 levels).

• Scanning Method: Static, 1/4 Scan, 1/8 Scan, 1/16 Scan.

• Operating Frequency: 10-25MHz.

Scanning Method Comparison:

4. Resistors & Capacitors: Basic Components

• Current-limiting Resistors: Precision ±1% required for consistent current.

• Chip Capacitors: Sizes 0402, 0603, used for power filtering.

• Resistor Arrays: 8-in-1 packages save space.

5. Plastic Housing: Protective Shell

Material Properties:

• PC + 10% Glass Fiber: High strength, resists deformation.

• Flame Retardant Rating: UL94 V-0.

• Color: Matte black, surface roughness Ra 0.8-1.6.

• Protection Rating: Front face IP54, can reach IP68 after potting.

6. Connectors: Assembly Interface

• Pin Headers & Sockets: 2.54mm pitch is most common.

• Card-edge Connectors: Used for fine-pitch modules.

• Waterproof Connectors: For outdoor modules.

Part 2: Working Principles: From Signal to Image

Step 1: Signal Reception & Processing

The controller card converts video signals into data the module understands. Example for a P2.5 module (256x128mm):

• Resolution: 64 pixels wide x 32 pixels high = 2,048 pixels.

• Data per Frame: 3 bytes per pixel (R,G,B) = 6KB per frame.

• Data Rate at 60Hz Refresh: 6KB * 60 = 360 KB/s.

Step 2: Driver IC Processing

Internal workflow of the driver chip:

1. Receives serial data, converts to parallel data.

2. Generates PWM pulses based on grayscale data.

3. Outputs current row-by-row according to scan sequence.

PWM Dimming Example:
For 50% target brightness:

• Switch the LED on/off 5000 times per second (5kHz PWM frequency).

• The "on" time occupies 50% of each cycle.

• The human eye perceives this as 50% brightness.

Step 3: Current Drives the LEDs

LED Operating Current:

• Low-power LEDs: 10-20mA.

• Medium-power LEDs: 30-60mA.

• Forward Voltage: Red 2.0-2.2V, Green 3.0-3.2V, Blue 3.0-3.4V.
  Constant current drive ensures uniform brightness, with current accuracy typically within ±1.5%.

Part 3: Key Specifications Explained

1. Pixel Pitch

Distance between centers of adjacent pixels. Common specs:

• P10: Outdoor advertising, viewing distance >10m.

• P4: Indoor malls, viewing distance 4-10m.

• P2.5: Meeting rooms, viewing distance 2.5-5m.

• P1.25: Control rooms, viewing distance 1.5-3m.

2. Brightness

• Indoor Modules: 600-1200 cd/m².

• Semi-Outdoor Modules: 2000-3000 cd/m².

• Outdoor Modules: 5000-8000 cd/m².
  Brightness uniformity should be ≥97% (center vs. corners).

3. Power Consumption Calculation

Example for a P2.5 module (64x32 pixels):

• Max Power: 0.2W/pixel * 2048 pixels = 410W.

• Avg. Power (50% white): ~200W.

• Standby Power: <5W.

4. Lifetime Data

• L70 Lifetime (to 70% brightness): >100,000 hours.

• Failure Rate: <0.1% per 1000 hours.

• Warranty Period: 2-3 years (indoor), 3-5 years (outdoor).

Part 4: Manufacturing Process Highlights

1. SMT Assembly

• Solder Paste Printing: Thickness 0.1-0.15mm.

• Placement Accuracy: ±0.05mm.

• Reflow Soldering: 8 zones, peak temp 245-250°C.

• Output: 15-25 thousand placements per hour.

2. Potting Process (Outdoor Modules)

• Mix Ratio: Resin A : Resin B = 1:1.

• Vacuum Deaeration: -0.1MPa, 30 minutes.

• Curing: 25°C for 24 hours or 60°C for 4 hours.

3. Testing Standards

• Power-on Test: 100% inspection.

• Aging Test: 72 hours at room temperature.

• Temperature Cycling: -20°C to +60°C, 5 cycles.

Part 5: Selection Guidelines

1. Inspection Methods

1. Brightness Test: Use a luminance meter to check 9-point uniformity.

2. Color Check: Display pure red, green, blue, white; check consistency.

3. Refresh Rate Test: Record with a phone camera; no obvious scan lines should appear.

4. Flatness Check: Use a straight edge; gaps should be <0.5mm.

2. Cost Structure Analysis

Example for a P2.5 module:

• LED Lamps: 35-45%

• PCB: 15-20%

• Driver ICs: 20-25%

• Housing & Accessories: 10-15%

• Assembly Cost: 10-15%

3. Maintenance Considerations

• Mean Time To Repair (MTTR): <10 minutes per module.

• Recommended Spare Parts: 5% of total module quantity.

• Required Tools: Phillips screwdriver, suction cups, test card.

Part 6: Technology Trends

1. Mini LED Progress

• Chip Size: 100 x 200 µm.

• Mass Production Pitch: P0.7 - P0.9.

• Brightness: 1000-1500 cd/m².

• Contrast Ratio: >10,000:1.

2. Energy Efficiency Improvements (2020-2023)

• Luminous Efficacy Increase: from 130 lm/W to 180 lm/W.

• Power Consumption Drop: ~30% reduction for equivalent brightness.

• Heat Dissipation: Use of aluminum substrates reduces temperature rise by 15-20°C.

3. Standardization Advancements

• Interface Standardization: HUB75E becoming mainstream.

• Size Standardization: 160x160mm, 256x128mm are common.

• Protocol Standardization: Support for Art-Net, sACN lighting protocols.

Conclusion: Practical Recommendations

1. Indoor Meeting Rooms: Choose P1.8-P2.5, refresh rate ≥3840Hz.

2. Outdoor Advertising: Choose P4-P6, brightness ≥5000 cd/m², IP65 rating.

3. Stage Rental: Choose lightweight design (≤8 kg/m²), quick-lock mechanisms.

4. Control Rooms: Choose P1.2-P1.5, support for low-brightness high grayscale.

A high-quality LED module should have:

• Uniform brightness, no color deviation.

• Reasonable temperature rise, good heat dissipation.

• Robust connectors, easy maintenance.

• Accurate specifications, no false labeling.

Before purchase, always request physical samples, perform a 72-hour aging test, and verify that the manufacturer's test report matches the actual sample.
