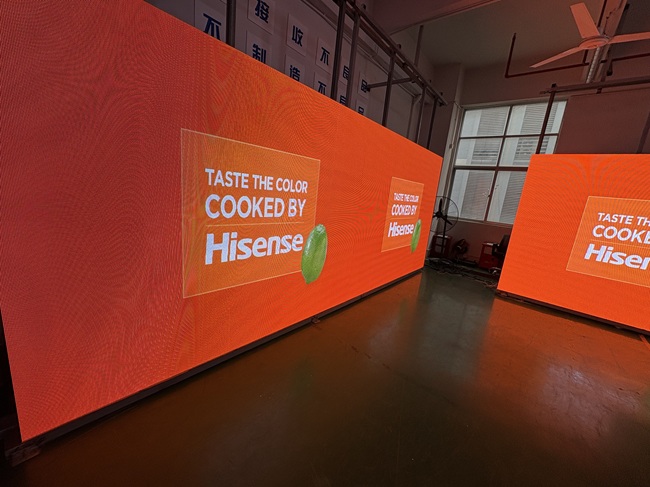

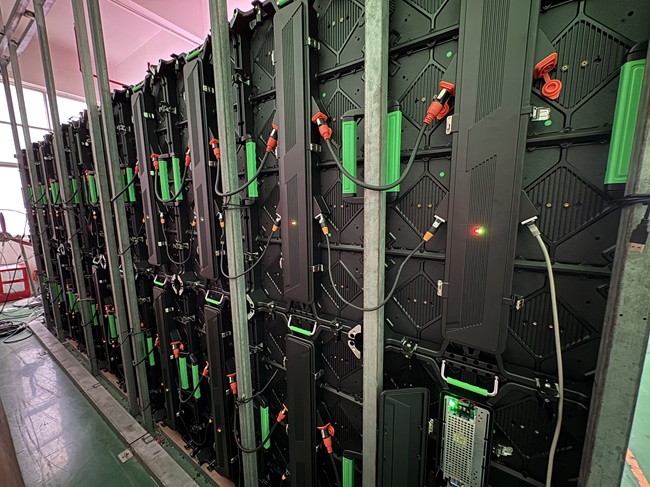

Factory Testing of Outdoor P2.976 LED Rental Screens

Today, we will take you inside an LED display manufacturing workshop, where you will gain a detailed understanding of the quality testing process for outdoor P2.976 rental screens through on-site recorded test footage. As a mainstream product in the rental market, every step of P2.976 production is strictly controlled.

What Is P2.976? A Detailed Look at Technical Parameters
P2.976 refers to an LED display with a pixel pitch of 2.976 millimeters. This size is precisely calculated to strike the optimal balance between cost and performance:

• Viewing Distance: Ideal for medium-sized venues, with a recommended range of 4–20 meters.

• Resolution: 112,896 pixels per square meter.

• Brightness: Standard brightness of 1,500–2,000 cd/㎡, with support for automatic adjustment.

• Refresh Rate: 3,840 Hz, effectively preventing scan lines during filming.

In-Depth Analysis of Four Core Testing Procedures

1. Optical Laboratory: Precision Down to Every Pixel
   In the optical testing area, we use a CS-2000 spectroradiometer to inspect each module:

   • Brightness Uniformity: Must exceed 98% to ensure no dark spots.

   • Color Gamut Coverage: Reaches 120% of the NTSC standard for richer colors.

   • Color Temperature Consistency: Controlled within a range of ±200K.
     Test data show that our P2.976 products maintain a brightness variation of less than 2% across the entire screen under white balance conditions, which is key to uniform display performance.

2. Waterproof Laboratory: Testing Beyond Standard Requirements
   Outdoor displays must withstand harsh weather conditions. Our testing standards far exceed industry norms:

   • IP68 Protection: Module-level waterproofing, tested by submersion in 1 meter of water for 72 hours.

   • Rain Simulation: Mimics heavy rainfall at 100mm/hour for 4 hours.

   • Temperature Shock: Rapid cycling between -40℃ and 85℃ to evaluate material stability.
     Last year, screens supplied for a music festival endured three consecutive days of heavy rain without a single failure.

3. Environmental Simulation Laboratory: From Desert to Polar Conditions
   In this lab, we simulate global climate extremes:

   • High-Temperature Testing: Continuous operation for 72 hours at 55℃.

   • Low-Temperature Testing: Cold start and sustained operation at -30℃.

   • Humidity Testing: Exposure to 40℃/95% RH conditions.
     These tests ensure our products perform reliably in environments ranging from the deserts of Dubai to the winters of Harbin.

4. Mechanical Performance Testing: Simulating a Decade of Wear and Tear
   Rental screens undergo frequent assembly, disassembly, and transportation. We simulate long-term use through accelerated aging tests:

   • Vibration Testing: Simulates 2,000 kilometers of road transport.

   • Plug-and-Play Testing: Power and signal interfaces are repeatedly connected and disconnected 5,000 times.

   • Load Testing: Floor screens must withstand 2 tons per square meter of pressure.

Core Technologies and Innovations

• Precision Manufacturing Processes
  We employ advanced techniques to ensure quality:

  • 0201 Encapsulation Devices: Smaller size for higher resolution.

  • Nano-Coating Technology: Improves waterproof and moisture-resistant performance by 300%.

  • Fully Automated SMT: Placement accuracy of ±0.02mm.

• Intelligent Monitoring System
  Every screen is equipped with smart monitoring:

  • Temperature Monitoring: 32 temperature sensors for real-time tracking.

  • Fault Localization: Pinpoints issues down to individual pixels.

  • Power Optimization: Automatically adjusts power based on content, reducing energy consumption by 40%.

Real-World Application Cases and Performance Data

• Case 1: Summer Music Festival
  Usage Duration: 7 consecutive days, 18 hours daily.
  Environmental Challenges: Sun exposure, rainfall, high humidity.
  Performance Data: Zero failures, 15% lower power consumption than expected.

• Case 2: Commercial Exhibition
  Setup Time: 96 square meters installed in 2 hours.
  Display Performance: Perfect 4K content rendering.
  Client Feedback: Highly praised for color consistency.

Continuous Innovation and Quality Improvement
Our commitment to R&D remains strong:

• 2023 R&D Investment: 8.2% of revenue.

• Annual Updates to Testing Standards.

• Client Feedback Addressed Within 24 Hours.

Conclusion
Quality is not just tested—it is built into every step of the manufacturing process. From the first component to the final product, over 128 inspection procedures ensure that every P2.976 display meets our stringent standards. We believe that only products that endure rigorous testing can provide our clients with reliable performance in real-world applications.

For more technical details or to request test reports, please contact our technical team.
