A comprehensive on-site inspection must be conducted before installation, which is fundamental to project success. Professional measuring tools are required to record the following key data:
Installation Location Dimensions: Precisely measure the width, height, and thickness of the mounting surface, with data accurate to the centimeter.
Load-Bearing Structure Evaluation: Use a rebar scanner to detect the internal wall structure and confirm the concrete grade is not lower than C30.
Ambient Light Measurement: Measure ambient illuminance values at different times of the day (e.g., 9 AM, 12 PM, 3 PM).
Viewing Distance Analysis: Calculate the distance from the primary viewing area. Determine screen specifications based on the formula: Optimal Pixel Pitch (mm) = Viewing Distance (m) / 1100.
Based on survey data, determine the display's technical parameters:
Pixel Pitch Selection for Standard Outdoor Locations: P4-P10 (for viewing distances of 15-50 meters).
Brightness Requirements: ≥6000 cd/㎡ under sunny midday conditions; ≥4500 cd/㎡ for normal weather.
Protection Rating: Must meet IP65 standard (fully dust-tight and protected against water jets).

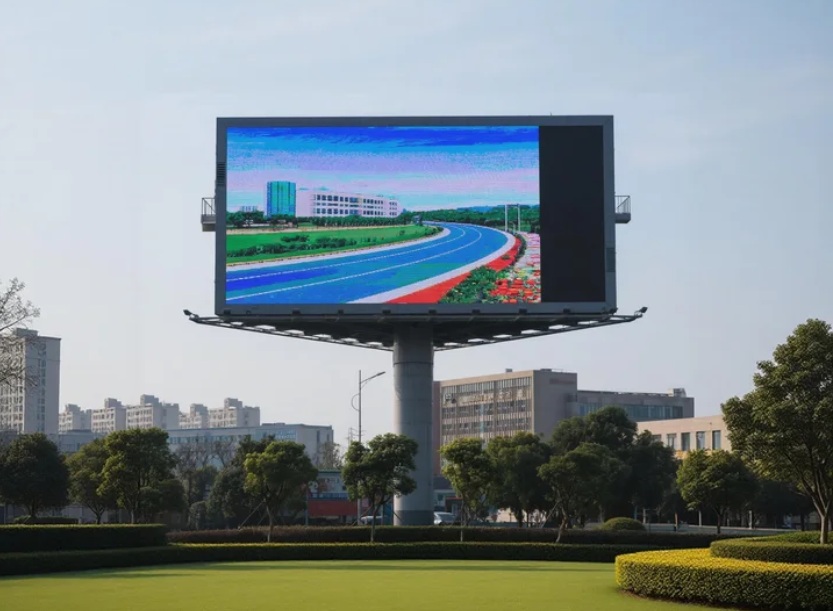

The steel structure for outdoor displays must meet the following requirements:
Material Specifications:
Main Column: Hot-dip galvanized square tube, 200×200×8mm.
Crossbeam: Hot-dip galvanized square tube, 150×150×6mm.
Diagonal Bracing: Hot-dip galvanized angle steel, 100×100×5mm.
Load-Bearing Calculations:
Steel Structure Self-Weight: Calculated based on actual material weight.
Screen Body Load: Calculated as 1.2 times the display weight.
Wind Load: Calculated based on the local 50-year maximum wind pressure value (≥0.8 kN/㎡ in coastal areas; ≥0.5 kN/㎡ inland).
Reinforced concrete foundation construction must ensure:
Foundation Depth: Not less than 1.5 meters (must be below the frost line in northern regions).
Concrete Grade: C30 or higher.
Curing Time: No less than 7 days in summer; no less than 14 days in winter.
Layout and Marking: Use a total station to establish installation datum lines, with error controlled within ±2mm.
First Cabinet Positioning: Installation deviation for the first cabinet must not exceed ±1mm.
Batch Installation: Install cabinets in order from left to right, top to bottom. Perform calibration after every 5 cabinets installed.
Flatness Adjustment: Use a feeler gauge to check gaps between cabinets, controlled within 0.5mm.
Power Wiring Requirements:
Main Cable: Use flame-retardant copper core cable with a cross-sectional area ≥16mm².
Branch Cables: Cross-sectional area ≥4mm².
Cable Identification: Both ends of each cable must be clearly labeled.
Grounding System:
Ground Resistance: ≤4Ω (measured with a ground resistance tester).
Grounding Electrode: Use 50×50×5mm hot-dip galvanized angle steel, 2.5 meters long, spaced 5 meters apart.
Grounding Conductor: Use 40×4mm hot-dip galvanized flat steel.
Outdoor displays should be equipped with a dedicated power distribution cabinet with the following basic configuration:
Main Switch: Three-pole leakage protection circuit breaker with operating current ≤300mA.
Branch Switches: Configure one branch switch for every 3-5 cabinets.
Sequential Control: Equipped with a sequential power-on function with adjustable intervals (recommended 2-3 seconds).
Cable Sizing: Select cable cross-sectional area based on 1.5 times the display's total power.
Wiring Method: Separate high-voltage and low-voltage cables with a spacing of ≥30cm.
Protection Measures: Protect cables within galvanized steel conduits with a bending radius ≥6 times the conduit diameter.
Single Cabinet Test: Power on and test cabinets individually to check brightness uniformity.
Section Debugging: Perform an overall check after debugging each section (approximately 20 cabinets).
White Balance Calibration: Use a color analyzer for calibration, controlling color temperature at 6500K ±500K.
Brightness Adjustment: Automatically adjust based on ambient light; nighttime brightness should not exceed 30% of daytime brightness.
| Symptom | Possible Cause | Testing Method | Solution |
|---|---|---|---|
| Partial Black Screen | Power Supply Failure | Measure Output Voltage | Replace Power Module |
| Color Abnormality | Loose Data Cable | Check Connection Terminals | Reconnect Data Cable |
| Uneven Brightness | LED Degradation | Measure with Luminance Meter | Replace Faulty Module |
Outdoor displays must be equipped with a three-level lightning protection system:
Direct Strike Protection: Install lightning rods with a protection angle of 45°.
Induced Surge Protection: Install surge protective devices (SPDs) at power input terminals with a response time ≤25ns.
Grounding Protection: Achieve a combined grounding resistance ≤1Ω.
Calculate heat dissipation requirements based on display power:
Natural Convection Cooling: Suitable for screens with power density <800W/㎡.
Forced Air Cooling: Configure axial fans with airflow calculated as: Screen Power (W) × 0.1 m³/h·W.
Air Conditioning Cooling: High-power screens (>300kW) require dedicated air conditioning units.
Weekly Checks:
Surface Cleaning: Remove dust using a soft brush.
Fastener Check: Inspect 10% of fasteners for tightness.
Temperature Monitoring: Record the internal temperature of the screen.
Monthly Checks:
Power Supply Test: Measure output voltages of all power channels.
Grounding Test: Check ground resistance values.
Structural Inspection: Check steel structure for corrosion.
Luminance Test: Quarterly; attenuation should not exceed 15% of the initial value.
Chromaticity Calibration: Semi-annually; color coordinate deviation Δx, Δy ≤0.005.
Functional Test: Annual comprehensive testing.
Safety First: Installation personnel must be certified, and safety harnesses are mandatory for work at heights.
Quality Control: Maintain inspection records for each stage with clear responsibilities.
Environmental Adaptation: Select appropriate protection ratings based on local climate characteristics.
Post-Installation Maintenance: Establish complete maintenance files documenting all repair records.
Q: What is the typical service life of an outdoor LED display?
A: Under normal operating conditions, the service life of main components is: LED chips ≥100,000 hours; power supplies ≥50,000 hours; control system ≥8 years. Actual service life is closely related to maintenance.
Q: Can the display operate normally in rainy conditions?
A: Displays with an IP65 rating can operate normally in rain. However, powering down during thunderstorms is recommended. Inspect the screen interior for any water ingress after heavy rain.
Q: How is the power consumption of the display calculated?
A: Maximum Power Consumption (kW) = Screen Area (㎡) × Average Power Consumption (W/㎡). For example, a P6 screen with an average consumption of 600W/㎡ and an area of 100㎡ would have a maximum power consumption of approximately 60kW.
Following the processes and standards outlined in this guide for outdoor LED display installation ensures project quality, extends service life, and reduces long-term maintenance costs. Each stage requires strict oversight by professional technical personnel to guarantee a successful and reliable installation.
