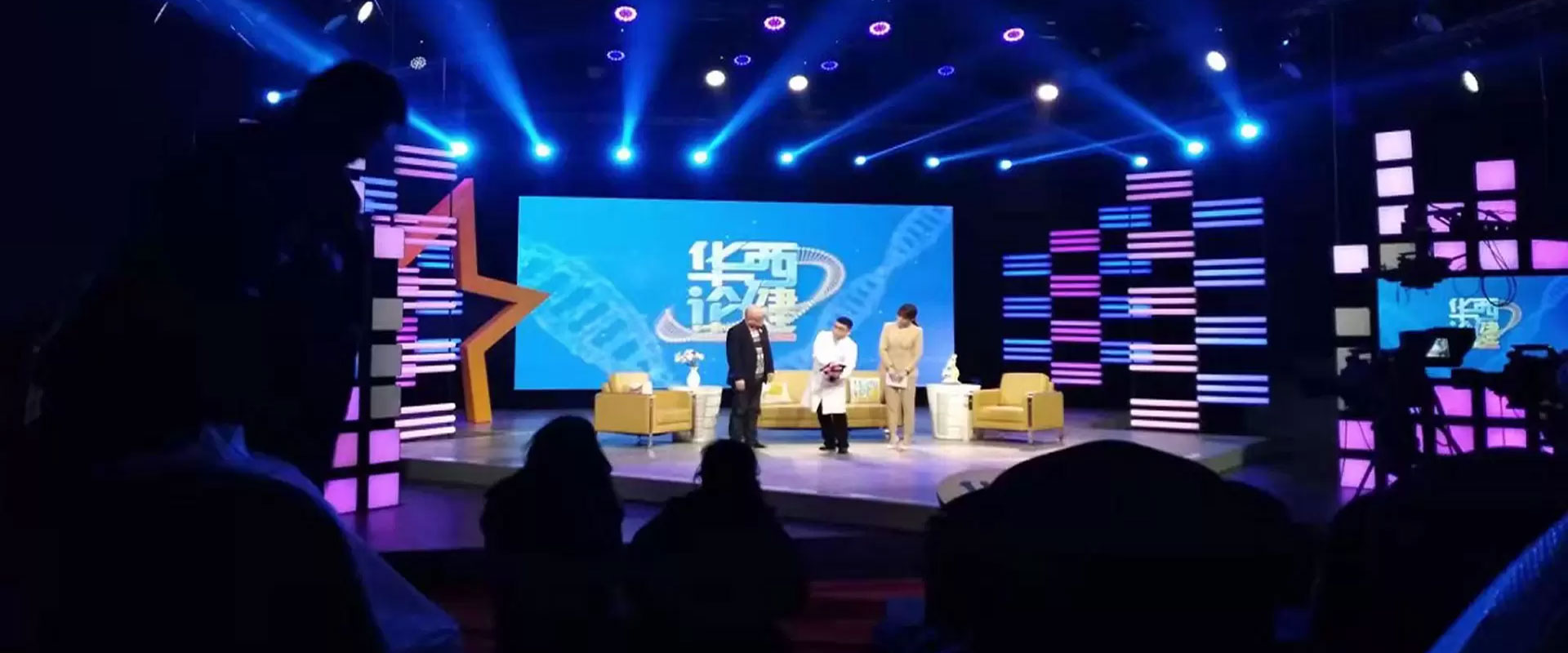

Sichuan Radio and Television Station has implemented a cutting-edge indoor LED display system to revolutionize its production capabilities for diverse programming formats. This 250㎡ three-in-one full-color display solution supports everything from large-scale TV shows to intimate interviews, establishing a new standard for broadcast studio technology in Southwest China.
Total Area: 250㎡
Chassis Units: 500 modular panels
Pixel Pitch: Custom fine-pitch (P2.6-P3.9 range)
Flexible Configuration:
Operate as single unified display
Split into 6 independent screens (41.6㎡ each)
Multiple custom layout combinations
| Input Source | Specifications | Applications |
|---|---|---|
| Internal Storage | 4K HDR content playback | Pre-recorded segments |
| External Feeds | 12G-SDI/HDMI 2.1 inputs | Live camera switching |
| Network Streams | NDI/IP video support | Remote guest integration |
Brightness: 1200-1500 nits (adjustable)
Refresh Rate: 7680Hz (studio-grade)
Contrast Ratio: 5000:1
Color Gamut: 110% NTSC
Viewing Angle: 178°/178°
Cabinet Thickness: Ultra-slim 90mm
Frame Synchronization: <100μs latency
HDR Processing: HLG/PQ support
Color Calibration: Automatic uniformity correction
Backup Redundancy: Dual hot-swappable processors
Live Broadcast Mode: Real-time camera feeds with graphics overlay
Recording Mode: Multi-camera ISO recording with screen capture
Virtual Set Mode: AR/XR environment integration
Audience Interaction: Live social media feed display
Preset Memory: 100+ scene configurations
Content Scheduling: Automated playlist management
Remote Control: iPad/PC control interface
Emergency Override: Instant fail-safe switching
| Program Format | Display Utilization |
|---|---|
| Talk Shows | Dynamic background content |
| Music Shows | Immersive visual effects |
| News Programs | Multi-window information display |
| Children's Shows | Interactive game elements |
Infinite Canvas: Seamless panoramic backgrounds
Depth Illusion: Parallax scrolling effects
Augmented Reality: Virtual set extensions
Real-time Graphics: Live data visualization
30% faster setup time compared to traditional sets
40% reduction in post-production requirements
Unlimited virtual background possibilities
Future-proof 8K-ready architecture
5-minute reconfiguration between program formats
Single operator control for most functions
Energy saving mode reduces power consumption by 35%
24/7 continuous operation capability
This innovative LED studio solution transforms Sichuan TV's production capabilities, enabling faster, more flexible, and more creative program production while significantly reducing operational costs. The system establishes a new benchmark for broadcast studio technology in China's regional television market.
